Heat insulating material

PHENOLIC XXX PEPER

Phenolic Resin, With static anti-static properties

Product Description:

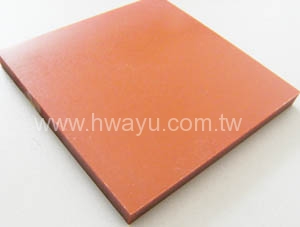

Phenolic-Grade XXX is a paper base phenolic laminate with good mechanical properties, high dielectric strength, and good resistance to moisture. Grade XXX is economically priced and is recommended for most mechanical applications, for use at radio frequencies, and in high humidity situations. Typical applications include: insulating washers, sleeves, switch bases, and panelboards.

Mechanical properties:

Tensile strength resistance Elongation Rate Resistance Coefficient Notched Impact Strength Bending Strength Bending coefficient Bending coefficient Compressive strength Compressibility Friction coefficient
98 -- -- -- 137 8972 241 -- --

Material properties:

Heat deflection temperature
(0.45Mpa)
Heat distortion temperature
(1.8Mpa)
Short-term maximum temperature Continuous use temperature Thermal conductivity Coefficients of linear expansion Combustion
-- -- 182 128 -- 1.48 HB

Properties of Electricity:

Volume resistivity Surface Resistance Dielectric Strength Density Rockwell hardness Shao D hardness Water absorption
3*10E9 5*10E9 27.55 1.38 M75 -- 1.32

Product Type / Size [mm]
Loading....

Product Type Size
Board
Stick
Pipe
